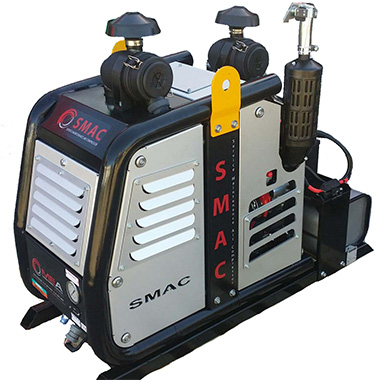

SMAC 40-D with fuel tank and battery module

The MEA (SMAC 40-D) Service Maintenance Air Compressors are vehicle mounted, 40cfm oil-injected rotary screw air compressor powered by a direct drive reliable Kubota 2-cylinder diesel engine. Engineered to be the most compact, lightweight, portable and reliable service maintenance air compressor available on the market.

The unit can be manufactured as either a fully vehicle integrated system which uses diesel fuel and 12v power from the host vehicle or can be built as a completely standalone system with the addition of the fuel tank & battery module. The unit can also be made fully mine site compliant system on request of the MEA – Mine specification upgrade.

With diesel reliability, low emissions and fuel efficiency the SMAC are suitable for most industry site regulations. Not only this, the 1.6 LHR @ 100 % load, 100% duty cycle (Air on Demand) and the MEA eco-cooling system makes the SMAC highly efficient.

The SMAC 40-D will minimise your ongoing maintenance costs and reduces your overall equipment payload.



Enquire Now

Specifications

  • Product Number:
    7201-4
  • Compressor :
    NK31
  • Compressor Type:
    Oil Injected Rotary Screw
  • Airflow:
    40CFM / 1132.67LPM
  • Pressure:
    145PSI @ 10BAR
  • Duty Cycle :
    100%
  • Engine Make/Model:
    Kubota Z602
  • Fuel Type:
    Diesel
  • Fuel Tank Capacity:
    23L
  • Battery Voltage :
    12v
  • Weight:
    192Kg
  • Dimensions :
    (W)539mm x (L)906mm x (H)906mm
