DRILLING FLUID PUMPS
The operation principle of the HDF drilling pump is based on a linear reversal movement of the hydraulic piston when the pump doesn’t include any rotating parts.
COMPACT AND POWERFUL
Designed and manufactured in Finland, HDF-pump is patented worldwide.
Due to its perfect output characteristics and high power/size ratio HDF-pump suits perfectly for directional drilling applications.
RELIABLE UNIT WITH LONG SERVICE LIFE
Forged heavy-duty pistons with abrasion–resistant coating as well as self-lubricated seals and forged poppet valves run over a thousand hours ensuring low operating and maintenance costs.
EASY TO USE AND ADJUST
To put the HDF-pump into operation, just connect the hydraulic and drilling fluid lines to the pump’s couplings.
No extra lubrication or cooling is needed.
Drilling fluid flow and pressure can be easily adjusted linearly by the hydraulics.

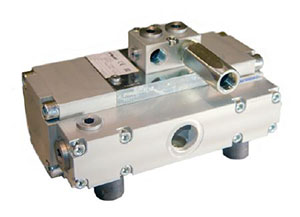

- Model:HDF 160/70-90
- Pumping Fluid Flow:70 l/min
- Pressure Max:2321 psi
- Power:19 kW
- Hydraulic Oil Flow:90 l/min (Max)
- Hydraulic Oil Pressure:210 Bar (Max)
