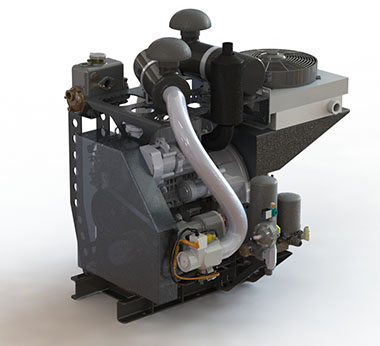

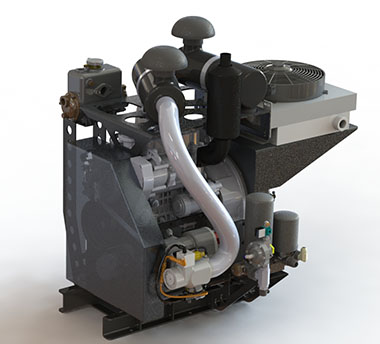

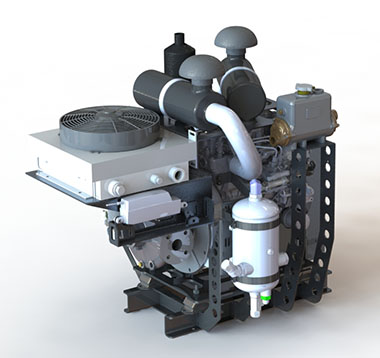

SNUFIT D 800-250-45

The Snufit-D 800 cross mount compressed air foam system is Mobile Energy Australia light to medium tanker design. The nature of the design allows for simple integration of CAFS and can be quickly delivered in dual handline or single front monitor. The reliable Kubota diesel, coupled with GAAM water pump, creates a strong foundation and can provide results in high demand applications.

All Mobile Energy Australia Cross Mount CAF Systems can be configured correctly to your design requirements. Speak with the team today to verify the most suitable vehicle integrated CAF system.

Enquire Now
Category:

Specifications

  • Model:
    SNUFIT D 800-250-45
  • Engine Specifications::
  • Type:
    Water cooled - Diesel
  • Manufacturer:
    Kubota
  • Model:
    D902
  • Power:
    18.5KW / 24.8HP
  • Speed:
    3600RPM
  • Voltage:
    12V or 24V
  • Water Pump Specifications::
  • Manufacturer:
    GAAM
  • Model:
    MK70
  • Max Pressure:
    8.25 BAR
  • Max Water Flow:
    800 LPM
  • Wet Caf:
    250 LPM
  • Compressor System Specifications::
  • Manufacturer:
    MEA
  • Max Pressure:
    10 BAR / 150 PSI
  • Max Air Flow:
    45 CFM @ 10 BAR
