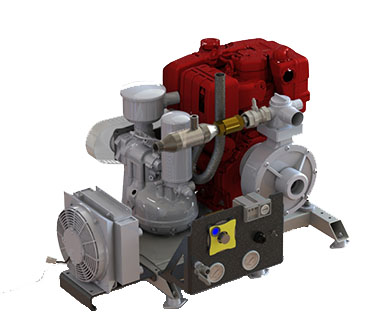

SNUFIT DA 220-150-35

The Snufit-DA 220 can be easily integrated into ultra-light and light tanker firefighting vehicles. The system was engineered to enhance traditional tactics while being able to provide Compressed Air Foam effectively. The reliability of the diesel engine and the well established Bell fire pump resulted in the successful design.

All Mobile Energy Australia cross mount CAF systems are built to enhance all traditional tactics while being able to switch into Caf’s mode easily. The overall flexibility of design is simplistic in nature but effective under application of either water or Cafs.

For more information about the Sunfit range, contact our team today.

Enquire Now
Category:

Specifications

  • Model:
    SNUFIT DA 220-150-35
  • Engine Specifications::
  • Type:
    Air cooled - Diesel
  • Manufacturer:
    Kolher
  • Model:
    KD440
  • Power:
    8.1KW / 10.9HP
  • Speed:
    3600RPM
  • Voltage:
    12V
  • Water Pump Specifications::
  • Manufacturer:
    BELL FIRE
  • Model:
    MK1
  • Max Pressure:
    8.5 BAR
  • Max Water Flow:
    350 LPM
  • Wet Caf:
    150 LPM
  • Compressor System Specifications::
  • Manufacturer:
    MEA
  • Max Pressure:
    10 BAR / 150 PSI
  • Max Air Flow:
    35 CFM @ 10 BAR
